Blauberg EC-SB-550-HK5 Komfort 5-Bed House, Complete Vertical MVHR Heat Recovery Ventilation Kit

Blauberg Heat Recovery Ventilation Kits are designed to take the hassle out of selecting, installing and operating an MVHR system. Our aim is to provide you with everything you need to install a highly effective, energy efficient heat recovery ventilation system.New for 2019 is, our updated Komfort EC SB heat recovery unit with smart home control system. This substantial upgrade enables you to program and control your indoor air quality from your smart phone or ipad using wifi or from anywhere in the world with a built-in smart hub. All Blauberg EC SB heat recovery units are now fitted with a built-in wireless router offering not just simple operation and control but full Modbus connectivity to any compatible building management system.Our MVHR units and kits are designed for every kind of project from, retrofit installations or self-build projects to large, multi-dwelling developments.

• A complete Heat Recovery Ventilation Kit for your home.
• Suitable for a 5 bedroom apartments, flats and houses.

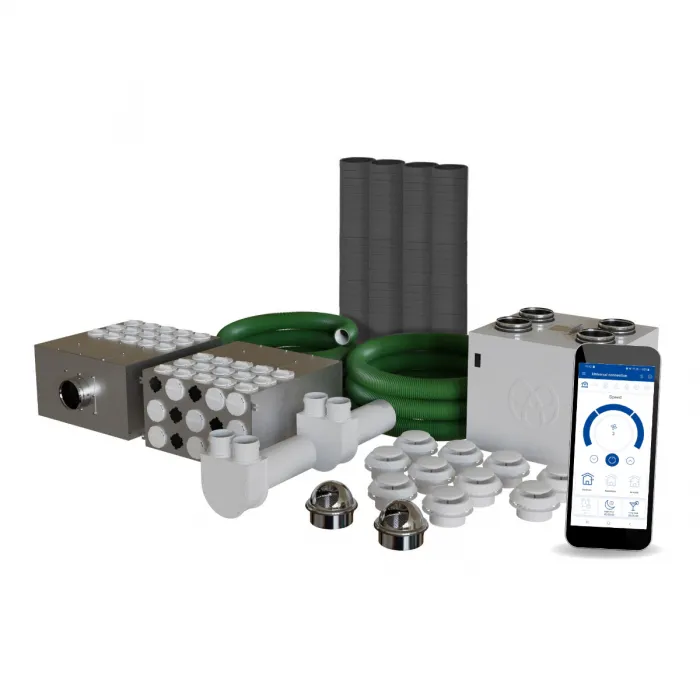

• MVHR unit, built-in Wifi controls, duct, grilles and ancillaries included.
• Free technical advice phone line to qualified heat recovery experts
• 5 year Blauberg warranty on all equipment supplied.

• Blauberg Komfort EC SB-550 Heat Recovery Unit.
• Built-in router to enable wifi control from any smart phone, tablet or building management system.

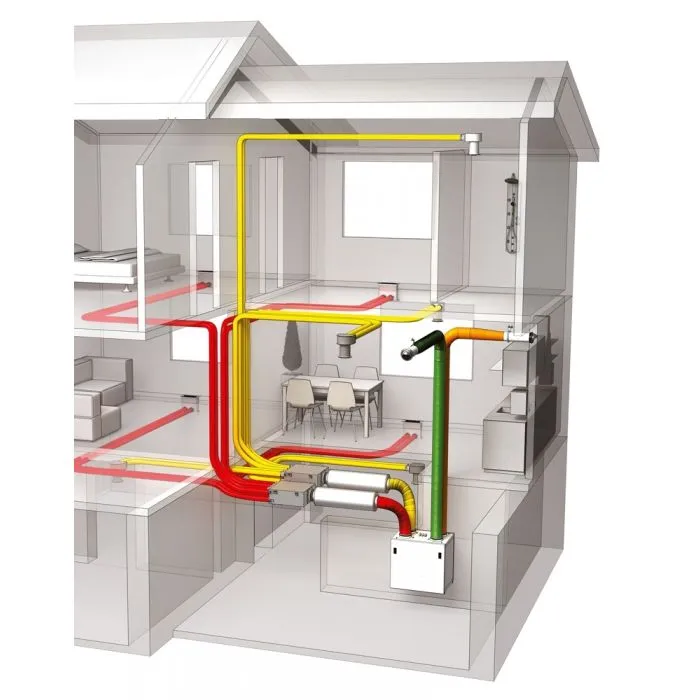

• Push-fit semi-rigid duct system with supply & extract manifold distribution boxes.
• PVC rigid ducting for manifold and termination connection.
• Stainless steel external extract and supply vents.
• Plenum boxes & adjustable ceiling mounted air valves finished in brilliant white.

• Self-contained, MVHR ,whole house heat recovery unit, designed for mounting in a loft or cupboard space.
• Provides a balanced supply of fresh, filtered, heat recovered air to the living areas, whilst simultaneously extracting stale, moist, odorous air from "wet" rooms.
• Dramatically reduces the effects of mould, condensation, CO2 build up, VOC's, damp air and odours.
• Supply and extract airflow rate of up to 191 l/s (690 m3/hour).
• Recovers a large percentage of the heat that would otherwise be wasted during conventional ventilation.

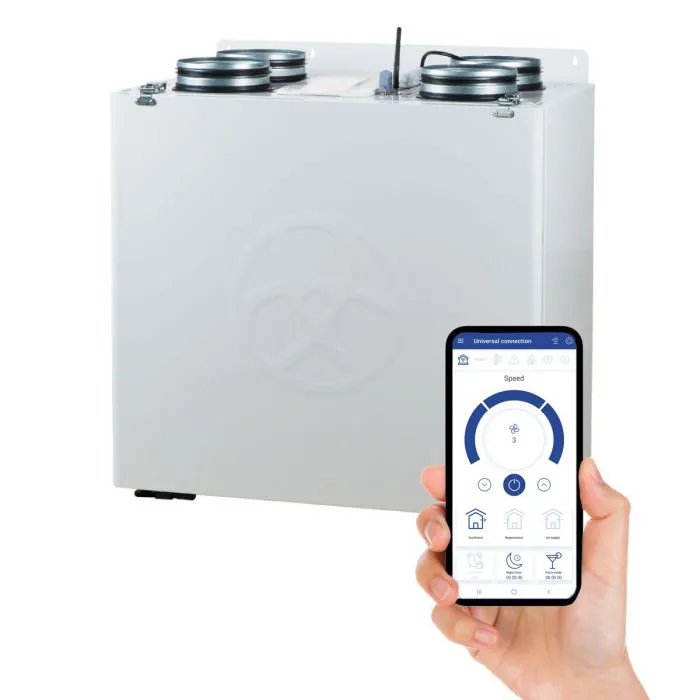

• Full functionality of your heat recovery unit control directly from your smart phone or tablet with a buiit-in wireless router as standard.
• 5 year Blauberg warranty.
• Summer bypass allowing you to bypass the heat recovery process in the warmer summer months.
• Dual configuration options (can be mounted left or right-handed).
• Extremely low energy consumption with an SFP (specific fan power) as low as 0.60 w/l/s.
• Supplied with G4 & F7 pollution/allergy filters as standard..
• Fitted with German, Blauberg, low energy EC motors for smooth, silent operation.
• ERP 2016, 2018 and A energy rating compliant.
• Holiday, trickle, boost, and purge speed control options.
• Independent BRE SAP Appendix Q listed (PCDB).
• Optional CO2, VOC, PM (particle matter) and humidity monitoring.
• Built-in frost protection.
• Fault and filter change indication as standard.
• Can be connected to fire alarm, external airflow dampers and cooling equipment.
• Designer LCD display and WiFi timer switches available as optional extras.

• Additional simple manual speed control, boost and timer override functions.
• 24 hour, 7 day programmable scheduling - set your heat recovery unit to work when you want, how you want.
• Allergy sensing, CO?, VOC, pollen and airborne particle monitoring and control capabilities.
• Automatic summer bypass operation to prevent overheating in summer months.
• Anti frost protection for increased heat recovery efficiency.
• Filter maintainance alarm.
• Simple fault finding menu.
• Fire alarm connection if fitted.
• Commissioning speed control adjustment of both supply and extract fans on all speeds to meet building regulation airflow rates. No need for separate router for commissioning.
• Set-point adjustment of humidity, temperature, CO2, VOC, PPM filtration, heating, cooling, filter clogging functions.
• Link to smart controls for WiFi, router, cloud, Ethernet and RS-485 set up functions.

Installation Manual:
